FTM

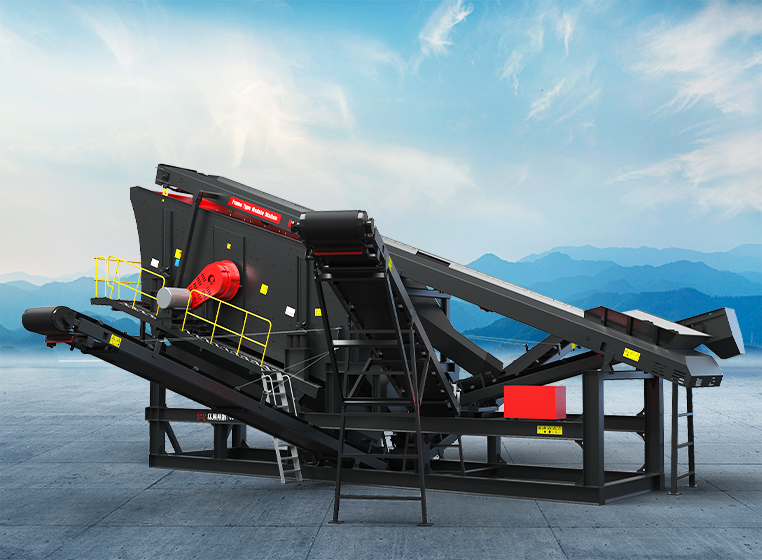

Modular Crushing Station
Input size:450-890mm
Production capacity:15-615t/h
Input size:450-890mm
Production capacity:15-615t/h
24 hours online customer service
72 hours customized production process
Factory visiting anytime
Strict inspection and delivery date
Installation and Training Services
Provide replacement parts
365 days after-sales online
Customized Output Size: 0-5mm, 5-10mm,10-30mm, 40-50mm, 1/2 inch, 3/4 inch, G1, G2, G3, sand and dust. etc.
Suitable Materials: stones rocks and other minerals, such as granite, limestone, quartz, river pebbles, basalt, diabase, andesite, sand, gravel, aggregate, construction waste, boulder, concrete, gold ore, iron ore, coal ,etc.
Application: road construction, sub-base, concrete work, brick and blocks, etc.
Mobile crushing screening station is a kind of movable crushing equipment, which integrates crushing and screening operation on one machine. It is widely used in mineral mining, stone mining highways (railways) and bridges, urban construction waste disposal and many other fields. Compared with the decentralized working environment of the fixed production line，the modular and integrated design makes the equipment layout more flexible and the site more concise and reasonable.

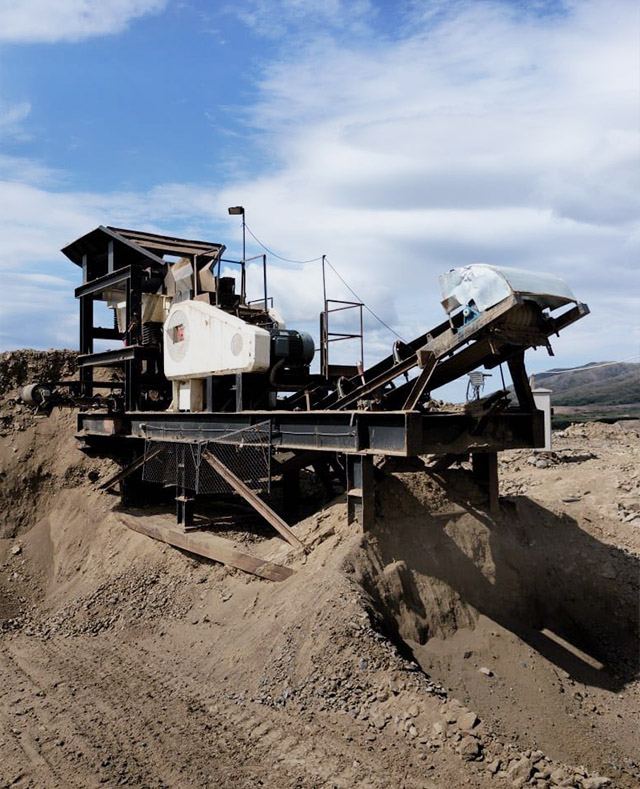

Material: granite
Feed size: 45cm
Aggregate size: 0-5mm, 20-30mm
Capacity: 130TPH
Feedback: This modular designed machine is much more flexible than a fixed crushing production line. The equipment is highly integrated and easy to install and debug. we are very satisfied

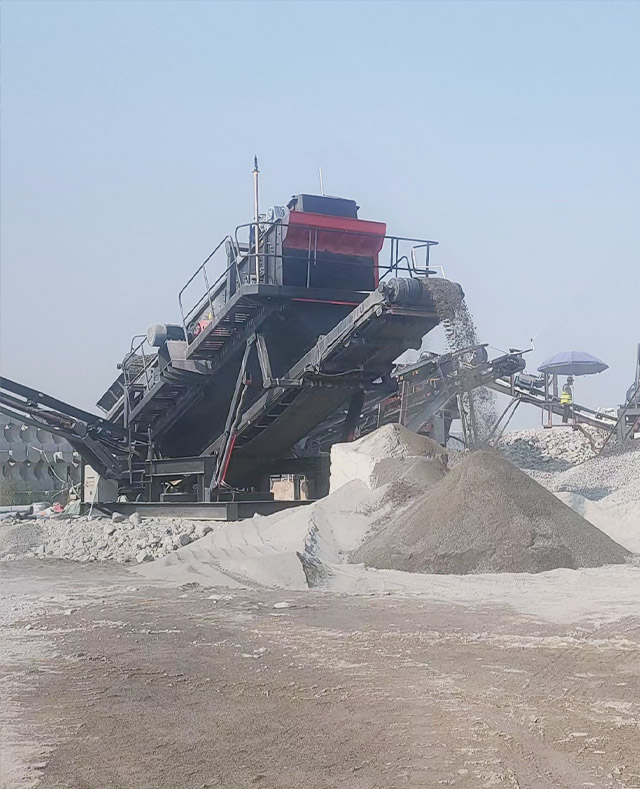

Material: Construction Bricks
Feed size: 65cm
Aggregate size: 0-10mm, 10-40mm
Capacity: 80TPH
Feedback: The FTM manager is patient and has rich experience. He designed a 80TPH crawler construction waste production line for us, which is about 5000 Dollars less than our expected investment.

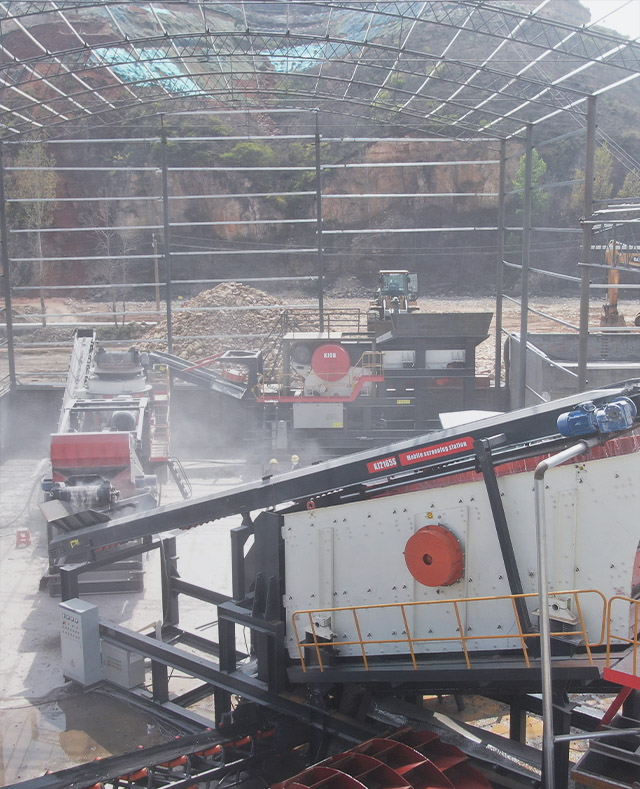

Material: Shale and Iron ore
Feed size: 780mm
Aggregate size: 3/4 and 1/2 inch
Capacity: 170TPH
Feedback: Shale and iron ore are hard and require high equipment. The quality of the FTM mobile crushing machine is very good. There are no other problems except for the replacement of wearing parts.

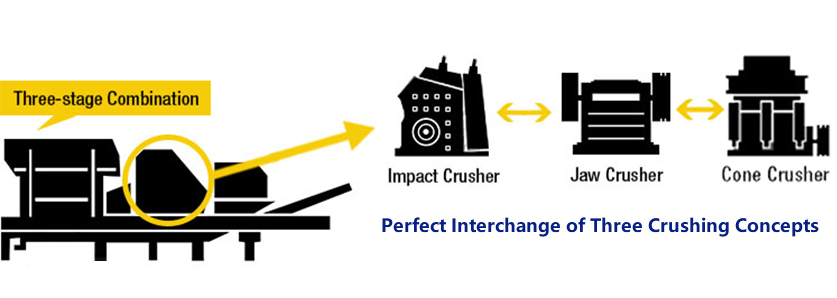

There are 3 series of mobile crushers in total; respectively they are: mobile Jaw crusher, mobile impact crusher and mobile cone crusher. What you need invest is just the single equipment cost. In a short time, it realizes the interchange of different crushing units in the mining working site. The perfect match between the whole systems, wider application ranges and more comprehensive crushing functions all maximize the customers' benefits.
The modular and integrated design makes layout flexible and the site concise and reasonable.
After simple Iifting，it can be quickly put into production.
Easily folkded and folded during transportation，minimizing disassembly and assembly.

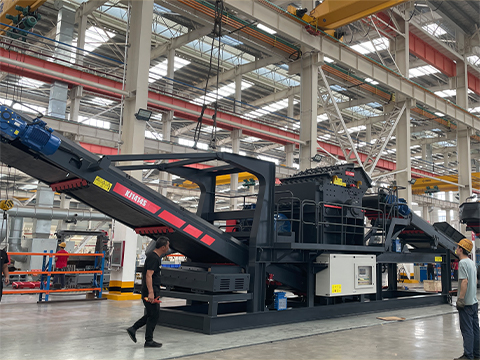

The high-performance main machine is produced by the latest industry technology.
| Series | Standard Model | On board equipment | On board equipment | Processing Capability (t/h) | Transport dimensions (mm) |
| JAW CRUSHER | KJ98 | GZDT9538 | HDX98 | 90-350 | 12750×3020×3850 |
| KJ110 | GZDT1145B | HDX110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | KJ1213 | GZDT9538 | C11213 | 80-320 | 12970×3020×3920 |
| KJ1316 | GZDT1145B | C11316 | 100-400 | 13290×3050×4080 | |
| CONE CRUSHING STATION | KJ300 | - | HPM300C1 | 60-280 | 15650×3270×3780 |
| KJ250 | - | SC250F1 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | - | HVI0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | - | HVI1040 | 120-284 | 15400×2920×3970 | |
| SCREENING STATION | KJ1865S-3 | - | 3HX1865 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | - | 4HX2165 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Series | Standard Model |
Processing Capability (t/h) |
Transport dimensions (mm) |
| JAW CRUSHER | KJ98 | 90-350 | 12750×3020×3850 |
| KJ110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | C11213 | 80-320 | 12970×3020×3920 |
| KJ1316 | 100-400 | 13290×3050×4080 | |
| CONE CRUSHING STATION | KJ300 | 60-280 | 15650×3270×3780 |
| KJ250 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | 120-284 | 15400×2920×3970 | |
| SCREENING STATION | KJ1865S-3 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
France, Germany, Albania, United Kingdom, Australia, Romania, Bulgaria, Spain, Portugal, Italy, Kosovo, Serbia, Russia, Poland, Czech Republic, Slovakia, Hungary, Netherlands, Belgium, Canada, United States, etc.
