Production Capacity: 0.5-650 ton per hour
Exported Countries: Africa, West Asia, Southeast Asia, Northern Europe, North and South America, Australia,etc.
Process Materials: gold ore, limestone, copper, quartz, chrome, silica sand, slag, gypsum, iron ore, feldspar, clinker, coal, manganese, etc.

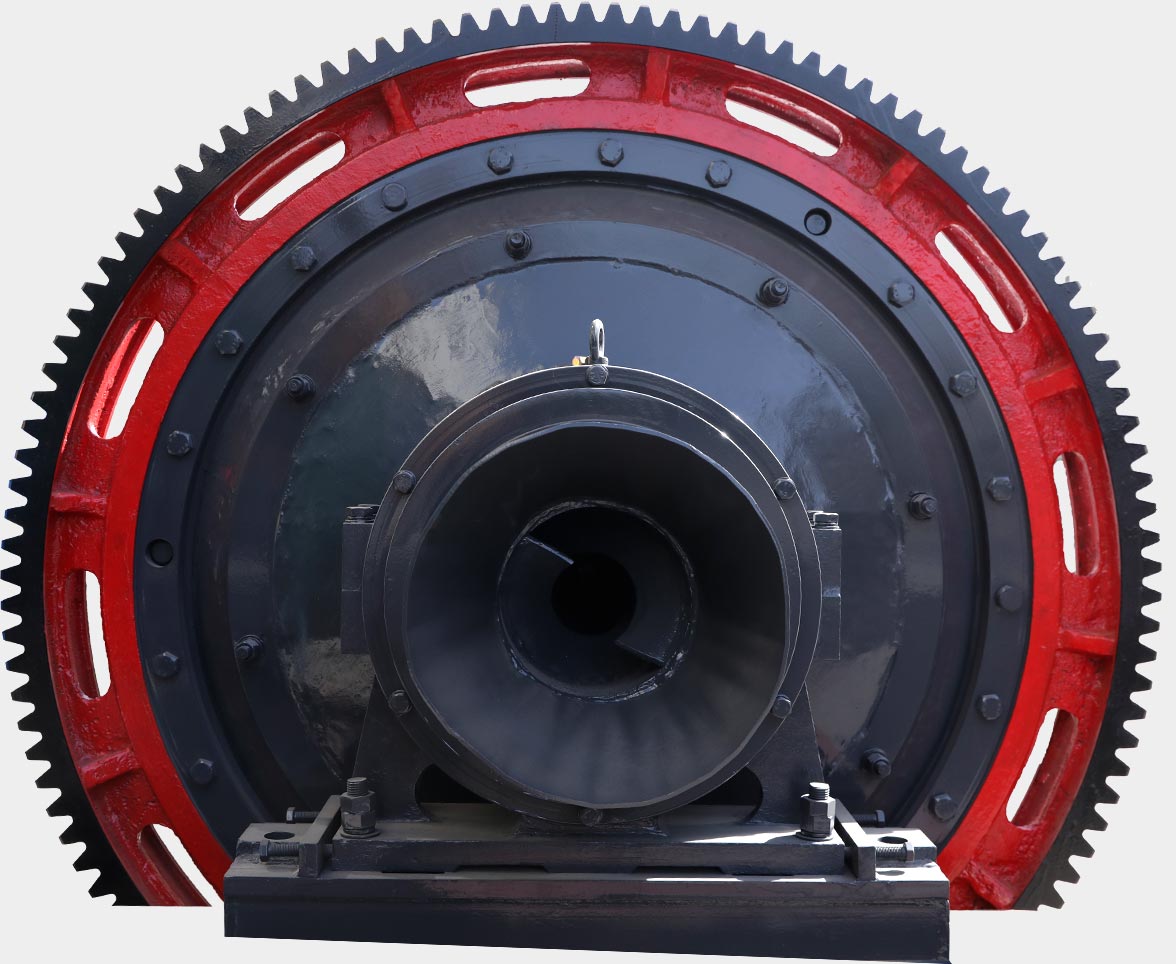

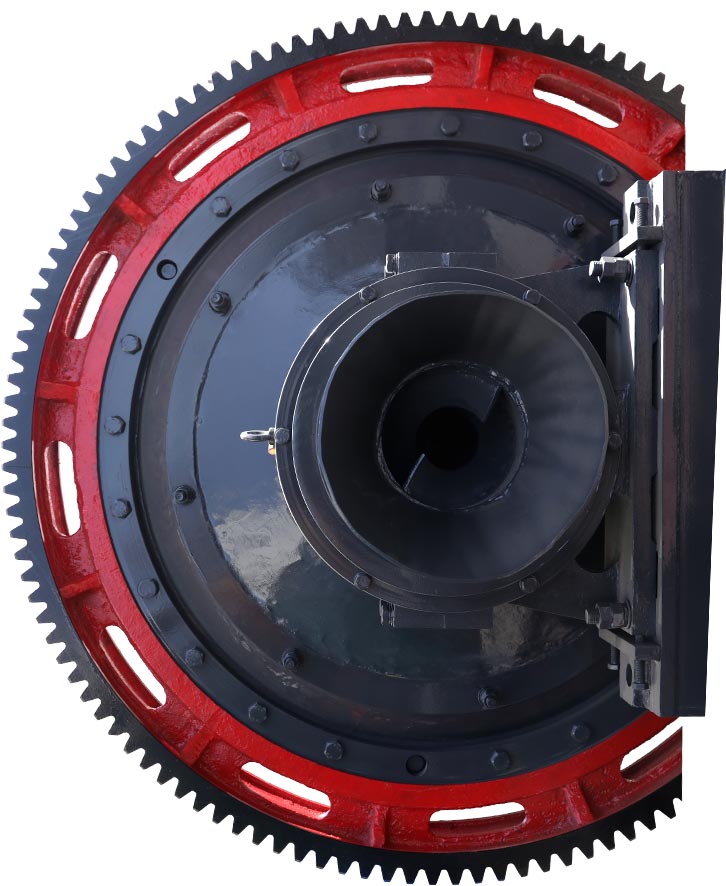

Ball mill is suitable for grinding mineral ores, stones and other materials to powder or particles types. It is widely used in non-ferrous metal mining, non-metallic mining, cement, the chemical industry, coal, silicate products, and glass ceramics, etc.
Grinding materials: Metal ores: gold ore, copper ore, iron ore, chromium ore, etc.
Chemical
materials: quartz sand, feldspar, limestone, marble, zircon sand, cement clinker, slag, etc.
Feeding size: Less than 25mm, If larger, a crusher is needed firstly.
Discharge size: fineness range is usually 80-200 mesh (75micon, 0.074mm). Finest is up to 300-500 mesh.
Hot Sale Capacity: Small capacity 1tph, 3 ton per hour, 5 tph, etc. Medium and Large capacity 10 tph, 70 tph, 150 tph, etc.
Slide to view materials

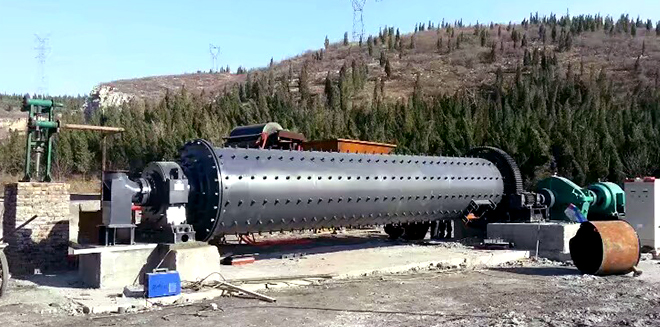

Dry ball mill: Grind materials into required mineral powder. Dry ball mill is generally used for grinding hard materials, such as quartz grinding powder, cement grinding powder, etc.

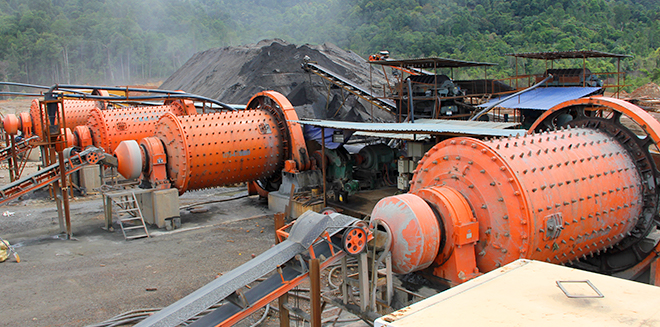

Wet ball mill: Grind materials into slurry of a certain concentration. Wet ball mills are generally used in the beneficiation of various minerals.
Grid-type ball mill: When the material particle size needs to be ground to a uniform product of 0.2~0.3mm, it is better to use a grid-type ball mill. It can discharge qualified products in time and reduce excessive crushing of ore.
Overflow ball mill: The particle size of the grinding product is generally less than 0.2mm. It is suitable for the second stage of grinding in the two-stage grinding process. Its function is to re-grind the intermediate product.

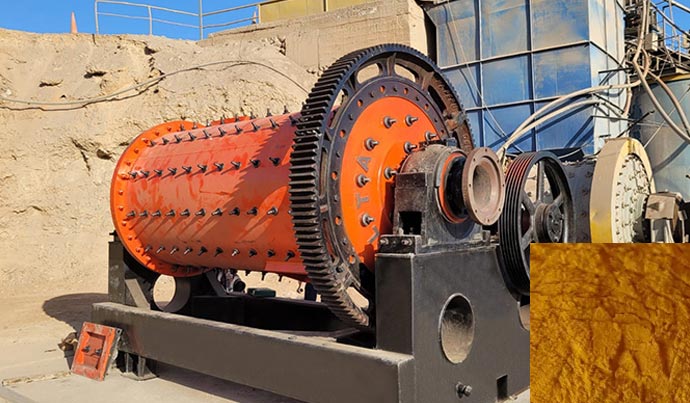

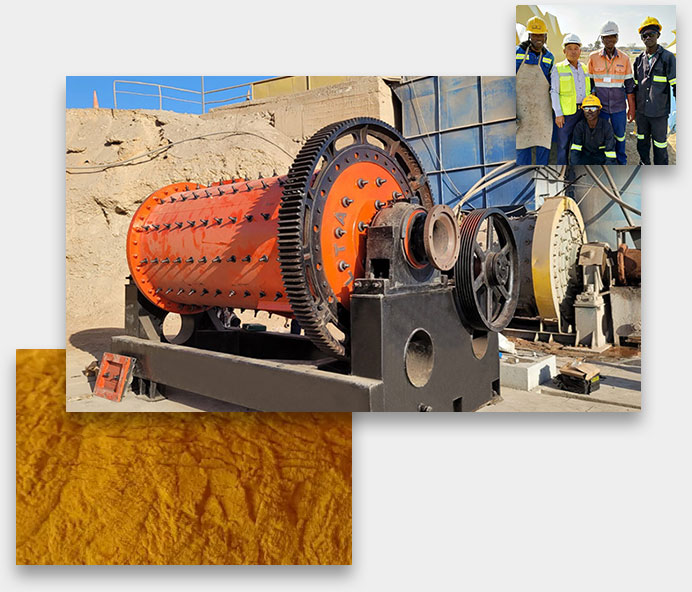

Capacity: 7 tph
Applied Material: copper stone and gold rock
Related Equipment: Gold copper ball mill used on the gold ore extracting and beneficiation plant
Customer Feedback: Our ball mill has been running for 11 months. We went to China and visited the FTM company on zhengzhou city before purchasing. There are three factories with large scale, which increased our purchasing confidence. We are quite satisfied with this milling machine.

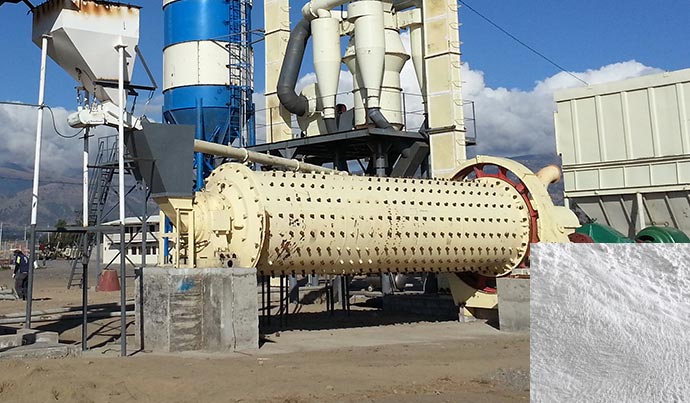

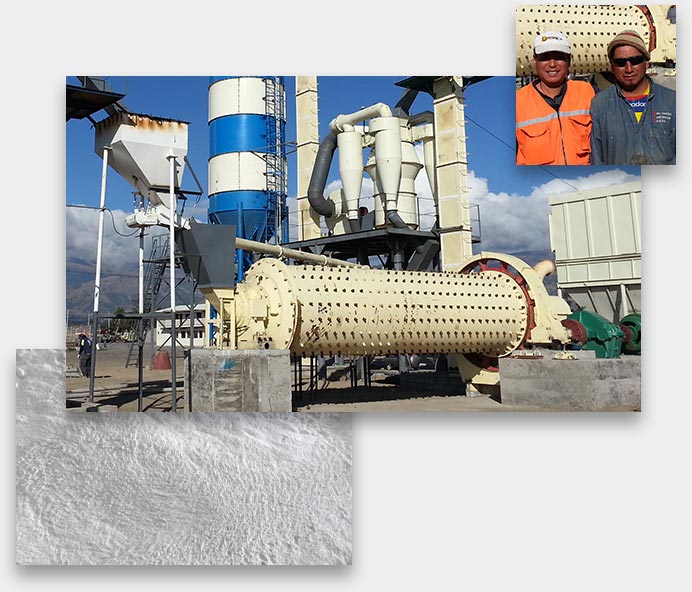

Capacity: 48 tph
Applied Material: limestone and quartz stone
Output size: 75 micron
Customer Feedback: The next day after we left our message, FTM’s sales consultant contacted us via email to inquire about the project status.And sent us a flow chart of the ball mill production line. After comparing prices and various factors, we chose FTM's ball mill.
24 hours online
Factory visiting anytime
Strict inspection and delivery date
Installation and Training Services
Provide replacement parts
365 days after- sales online
1.The company's products have passed ISO9001, CE and GOST international quality system certification.
2.We provide you with solutions, model introduction, quotation, and process design.
3.Deliver machines strictly on time.
4.We provide parts and after-sales guarantee.
Our Company is based in central China’s provincial capital city of Zheng Zhou, covering an area of 350,000 square meters. It occupies 260,000 square meters of standardized heavy-duty industrial workshop.
We exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, UK, etc. We provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
Based in central China’s provincial capital city of Zheng Zhou
Senior R&D engineer
Professional mechanic
Digital processing equipment
Professional after-sales service staff
| Model |
Shell rotation speed （r/min） |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight (t) |
| Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 | 380 | 95 |
| Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | As per process conditions | 630 | 149 |
| Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | As per process conditions | 850 | 169 |
| Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | As per process conditions | 1250 | 198 |
| Ф3600×8500 | 18 | 131 | <25 | 0.074-0.4 | 45.8-256 | 1800 | 260 |
| Ф4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 | 1500 | 230 |
| Ф4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 | 1600 | 242 |
| Ф4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 | 1800 | 249 |
| Ф4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 | 4500 | 525 |
| Model |
Feeding size (mm) |
Capacity (t/h) |
| Ф900×1800 | <20 | 0.65-2 |
| Ф900×3000 | <20 | 1.1-3.5 |
| Ф1200×2400 | <25 | 1.5-4.8 |
| Ф1200×3000 | <25 | 1.6-5 |
| Ф1200×4500 | <25 | 1.6-5.8 |
| Ф1500×3000 | <25 | 2-5 |
| Ф1500×4500 | <25 | 3-6 |
| Ф1500×5700 | <25 | 3.5-6 |
| Ф1830×3000 | <25 | 4-10 |
| Ф1830×4500 | <25 | 4.5-12 |
| Ф1830×6400 | <25 | 6.5-15 |
| Ф1830×7000 | <25 | 7.5-17 |
| Ф2100×3000 | <25 | 6.5-36 |
| Ф2100×4500 | <25 | 8-43 |
| Ф2100×7000 | <25 | 12-48 |
| Ф2200×4500 | <25 | 9-45 |
| Ф2200×6500 | <25 | 14-26 |
| Ф2200×7000 | <25 | 15-28 |
| Ф2200×7500 | <25 | 15-30 |
| Ф2400×3000 | <25 | 7-50 |
| Ф2400×4500 | <25 | 8.5-60 |
| Ф2700×4000 | <25 | 22-80 |
| Ф2700×4500 | <25 | 26-90 |
| Ф3200×4500 | <25 |
As per process conditions |
| Ф3600×4500 | <25 |
As per process conditions |
| Ф3600×6000 | <25 |
As per process conditions |
| Ф3600×8500 | <25 | 45.8-256 |
| Ф4000×5000 | <25 | 45-208 |
| Ф4000×6000 | <25 | 65-248 |
| Ф4000×6700 | <25 | 75-252 |
| Ф4500×6400 | <25 | 84-306 |
| Ф5030×6400 | <25 | 98-386 |
| Ф5030×8300 | <25 | 118-500 |
| Ф5500×8500 | <25 | 148-615 |
